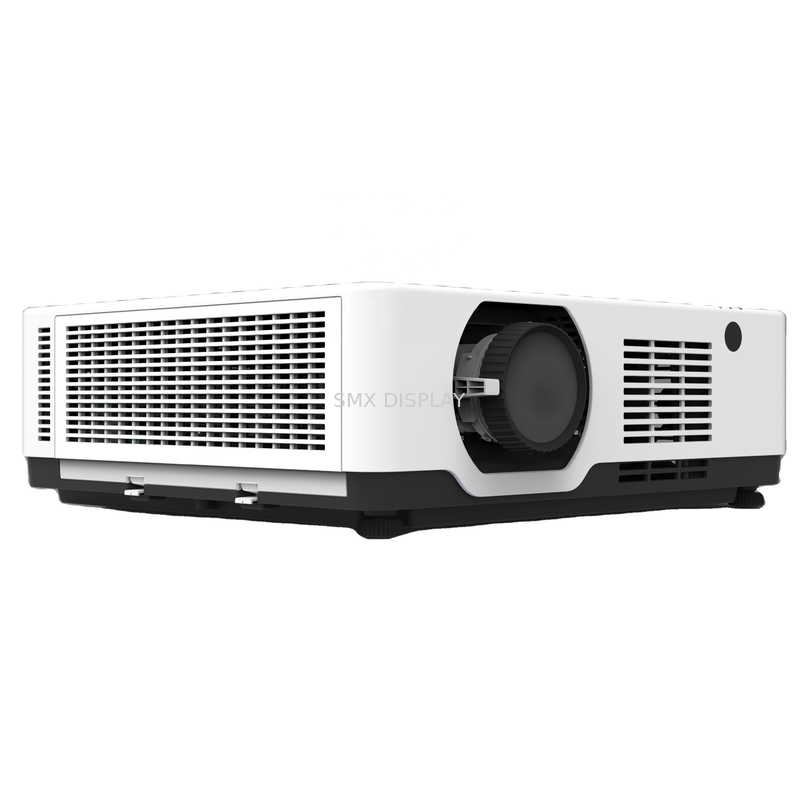

Home Theater 6500 Lumens WUXGA 3LCD Laser Projector With 4K Enhancement
| Product Name: | SMX 3LCD Laser Projector | Lumen: | 6500-lumen |
| Resolution: | WUXGA (1920 X 1200) | Display Technology: | Liquid Crystal Display |
| Display Panel: | 3x0.64" With MLA | F: | 1.5-2.08 |
| f: | 17.2x27.7mm | Throw Ratio: | 1.2-2.0 |
| Zoom/Focus: | Manual | Screen Size: | 30-300inch |
| Color: | White | Contrast Ratio (FOFO): | 5000000:1 |
| High Light: | 4K Enhancement 3LCD Laser Projector,WUXGA 3LCD Laser Projector,6500 Lumens Home Theater Projectors |
||
Specifications
| Specification for 6500 Lumen Laser Projector | ||
| Model | MX-VL650U | |
| Brightness | Brightness (Ansi Lumens) |
6500 |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64” with MLA |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Light source Life time |
FullNormal/Normal Model | 20000hrs |
| ECO1 Mode | 30000hrs | |
| ECO2 Mode | 30000hrs | |
| Projection Lens |
Lens Vendor | RICOH Lens |
| F | 1.5~2.08 | |
| f | 17.2~27.7mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.2(wide)-2.0(tele) | |
| Zoom Ratio | 1.6 | |
| Screen Size | 30-300 inch | |
| Lens Shift | V:＋60%～0%, H:±29% |
|
| CR | Contrast Ratio (FOFO) |
5000000:1 |
| Noise | Noise(dB) | 38dB(Normal) 30dB(ECO1) 28dB(ECO2) |
| Uniformity | Uniformity(Actual Min) -JISX6911 |
80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| DVI-D | N/A | |
| HD BaseT | *1(Optional) | |
| HD-SDI(3G-SDI) | N/A | |
| Video | N/A | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Output | VGA | *1 |
| HDMI 1.4B(OUT) | N/A | |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| Wired Remote(IN) | N/A | |
| Wired Remote(OUT) | N/A | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 8000h | |
| Power Consumption |
Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) |
360 | |
| Power Consumption (ECO1) (Max) |
280 | |
| Power Consumption (ECO2) (Max) |
230 | |
| ECO Standby Mode Power Consumption |
<0.5W | |
| Temp.&Humidity | Operation Temp. | 0 to 40°C |
| Operation Thumidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High Altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keyston Correction (Lens@center) |
V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control- AMX Discovery |
Yes | |
| LAN Control- PJ Link |
Yes | |
| Scanning Frequency |
H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution |
Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone |
| Blank | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture Model | Dynamic, Standard, Cinema, Colorboard, sim-DICOM ,Blackboard(Green) |
|
| Cooling Time | 0s,normal,30s | |
| Closed Caption | N/A | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Others | 360° Projection | Yes |
| Edge Blending | N/A | |
| Wireless display (Optional function) |
SmartPhone: Android:Install APK for Android iphone: Airplay function PC Wireless Display: Support WiFi Display@Windows&MAC system through dongle |
|
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) |
405 (W)*358(D)*137(H) | |
| Net Weight (KG) |
~7.9 | |
| Packaging Box Dimensions (WxDxH mm) |
510 (W)*498(D)*260(H) | |
| Gross.Weight (KG) |
~10.4 | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power cord(EU) /power cord(Ja) Remote control&RC Battery |
|
Features
Laser Source
Easy to Install
Multiple Ports
High Quality Image
