20000 Lumen WUXGA Laser Projector for Large Venue 3D Mapping Projection

Product Details

Place of Origin: China

Brand Name: SMX

Certification: RoHS&CE

Model Number: MX-X20000U

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: negotiation

Packaging Details: carton

Delivery Time: 10 work days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000 Piece/Pieces Per Month

Get Best Price
Highlight:

20000 lumen laser projector

,

WUXGA large venue projector

,

3D mapping projection projector

Brightness:
20000 Lumens
Resolution:
WUXGA (1920 X 1200)
Contrast Ratio:
3,000,000:1
Light Source:
NICHIA LASER
Laser Life Time:
30000hrs
Throw Ratio:
1.24-2.01
Display Technology:
Liquid Crystal Display
Screen Size:
60-500 Inch
Aspect Ratio:
16:10/4:3/16:9
Brightness:
20000 Lumens
Resolution:
WUXGA (1920 X 1200)
Contrast Ratio:
3,000,000:1
Light Source:
NICHIA LASER
Laser Life Time:
30000hrs
Throw Ratio:
1.24-2.01
Display Technology:
Liquid Crystal Display
Screen Size:
60-500 Inch
Aspect Ratio:
16:10/4:3/16:9
20000 Lumen WUXGA Laser Projector for Large Venue 3D Mapping Projection

3D Mapping 20000 Lumen Laser Professional Engineering Projector: Elevate Large Venue & Outdoor 4K Video Projection

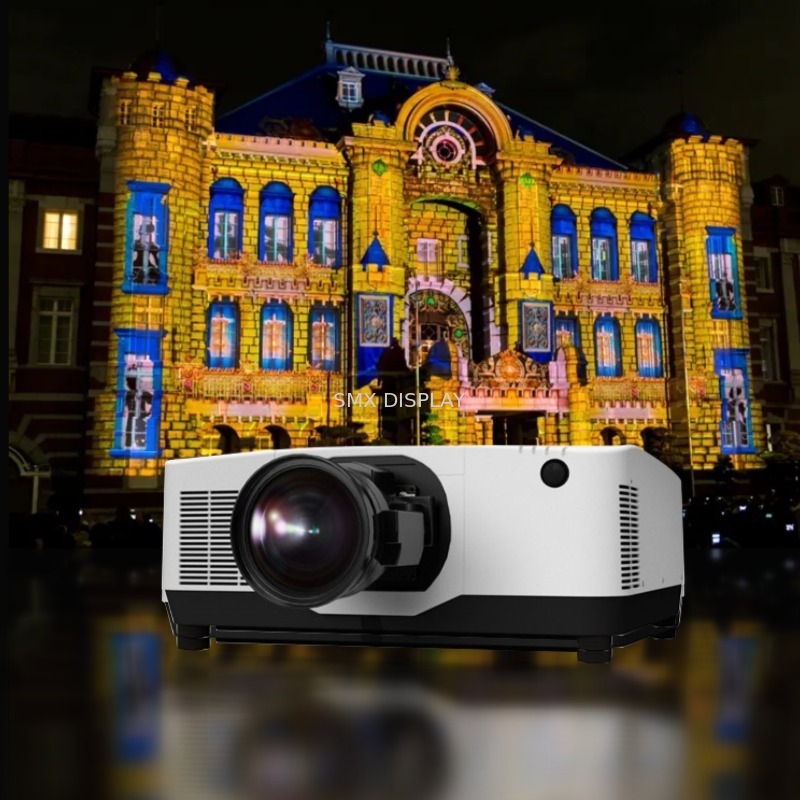

Designed for professionals seeking unmatched visual impact, the SMX MX-X20000U Laser Projector stands as a powerhouse for large venue events, outdoor building projections, and immersive 3D mapping experiences. With cutting-edge laser technology, 20000 lumens of brightness, and 4K support, this projector redefines what’s possible in professional visual presentations.

20000 Lumen WUXGA Laser Projector for Large Venue 3D Mapping Projection 0

Key Features



  • Long-lasting Laser Light Source: The laser light source boasts not only high brightness, but also an extremely long lifespan (approximately 20,000-30,000 hours) and stable color performance, eliminating the need for frequent lamp replacements throughout the project lifecycle. This ensures consistent image quality and significantly reduces maintenance costs.
  • Strong Environmental Adaptability: For challenging outdoor environments, 20,000-lumen project projectors typically feature IP5X dustproofing and a wide operating temperature range (e.g., 0°C to 50°C), capable of withstanding wind, sand, rain, and temperature fluctuations, ensuring stable operation even in inclement weather.
  • Professional Image Processing: These projectors have built-in edge blending and geometric correction features.
  • This means multiple projectors can be seamlessly stitched together to create ultra-wide images, and software can precisely conform to irregular curves like buildings, creating stunning 3D mapping effects.

20000 Lumen WUXGA Laser Projector for Large Venue 3D Mapping Projection 1





Hex Correction & Multi-Point Correction

Horizontal & vertical trapezoidal correction, as well as hexagonal correction, pillow/barrel distortion correction, and multi-point trapezoidal correction. The easy adjustment operation ensures that the user obtains the best imaging effect on all kinds of irregular projection surfaces.

20000 Lumen WUXGA Laser Projector for Large Venue 3D Mapping Projection 2



























































































SMX 20000 Lumen 3LCD Laser Projector
Model  Model# MX-X20000U
Key parts
  Light source Laser
Mainchip Topaz Prime PWC895
Brightness
  Brightness(Lumen) 20,000
Overall Spec
Panel Display Panel 3x1.0"
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Laser
Life time
Normal mode 20000hrs
ECO mode 30000hrs
Projection Lens Len Model MX-EG12ZLM
Image Circle Φ37.9
Lens Type Zoom Lens ST1
Zoom/Focus Motorized
F#(Wide-Tele) 1.80-2.24
f(mm) 27.7-44.3
Throw Ratio(16:10) 1.24-2.01
Zoom Ratio 1.62
Screen size 60-500 inch
Lens Shift V ±65%
Lens Shift H ±25%
CR Contrast Ratio(Min) 3,000,000:1
Noise Noise(dB) Full: 46db
Normal: 44db
Eco1: 43db
Eco2: 42db
Uniformity Uniformity TYP:90%
AR Aspect Ratio Native:16:10
Compatible: 4:3/16:9/normal/16:6
Terminal(I/O port)
Input VGA *1
HDMI 1.4(IN) *2
USB-A *1
USB-B *1 (Display)
RJ45 *1 (Display)
DVI-D *1
HD BaseT *1
HD-SDI (3G-SDI) Optional
Audio in
(mini jack,3.5mm)
*1 (VGA/DVI-D share)
DMX512 *1
  HDMI 1.4(OUT) *1
Audio out
(mini-jack,3.5mm)
*1
Control RS232C (Input) *1
RS232C (Output) *1
Wired Remote(IN) *1
Wired Remote(OUT) *1
General Spec
Audio Speaker N/A
Power
Consumption
Power Requeirements 100~240V@ 50/60Hz
Power Consumption
(Full) (Max)
1155W
Power Consumption
(Normal) (Max)
1000W
Power Consumption
(ECO1) (Max)
825W
Power Consumption
(ECO2) (Max)
580W
ECO Standby Mode
Power Consumption
<0.5W



Basic steps of 3D Mapping projection

The magic of 3D mapping doesn't just happen; it relies on a rigorous technical process to ensure the virtual image seamlessly blends with the physical object.

3D Scanning and Modeling

First, laser scanning or photogrammetry is used to obtain high-precision 3D model data of the projection object (such as a building facade or sculpture). This forms the foundation for all subsequent work, defining the shape of the projection "canvas."

Content Creation and Mapping

Designers create animation content specifically based on the object's geometric features. Then, using specialized software (such as Millumin or Resolume), the animation is "wrapped" onto the 3D model, simulating the projector's perspective to produce a pre-distorted and calibrated image.

On-site Projection and Blending

On-site, multiple high-brightness engineering projectors are precisely positioned. When the pre-calibrated image is projected, it appears regular from the projector's perspective. However, when it is applied to the complex surface of the object, the audience sees a dynamic image that perfectly conforms to the object's structure and exhibits no distortion. Through edge blending technology, the images of multiple projectors can be seamlessly spliced ​​into a complete, larger image.
