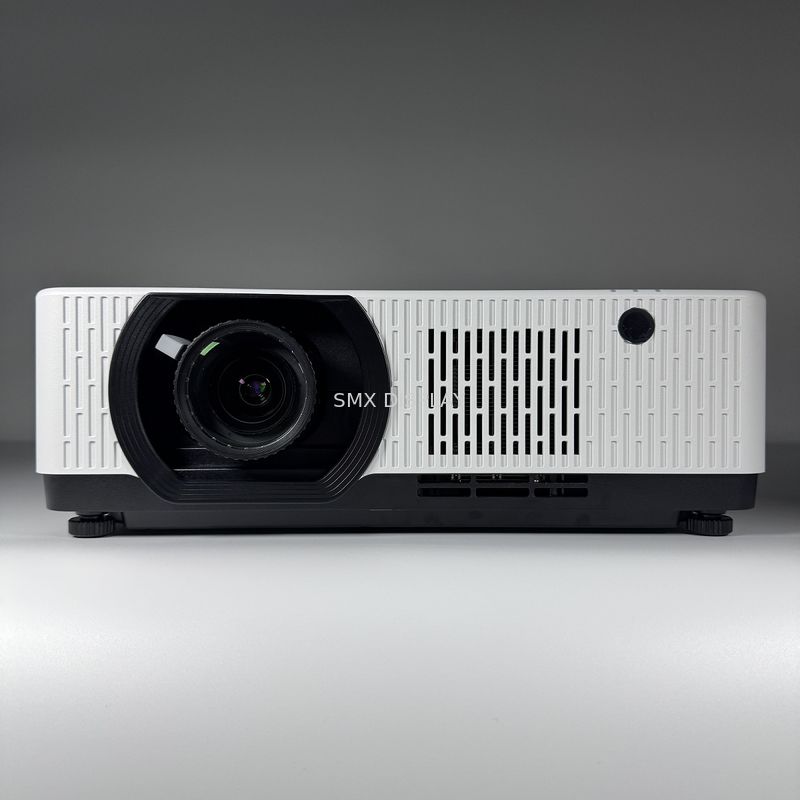

High-Brightness 3LCD WUXGA Laser Projector 8200 Lumens For Large Venues

Basic Properties
Place of Origin: China
Brand Name: SMX\OEM
Certification: CE&RoHs
Model Number: MX-VL820U
Trading Properties
Minimum Order Quantity: 1 set
Price: 2450 usd
Payment Terms: T/T, Western Union,paypal
Supply Ability: 50000 pcs/month
Tags

Laser Projector

High Brightness Projector

4K Projector
Specifications
Brightness: 8200lumen Color: White
Panel: 3x0.64" With MLA Technology: 3Liquid Crystal Display
Resolution: WUXGA (1920 X 1200) Contrast: 5000000:1
Life time: 30000 Hours Throw Ratio: 1.08(wide)-1.76(tele)
Aspect Ratio: Native:16:10 Compatible: 4:3/16:9 Lens Shift: V:＋45%～0%、 H:±21%
Lens type: Fixed
High Light:

Large Venues WUXGA Laser Projector

,

High-Brightness WUXGA Laser Projector

,

3LCD WUXGA Laser Projector
Product Description
SMX 8200LM 4K Outdoor Projector High Brightness 3D Laser Mapping 3LCD Projector
Product descriptions
The SMX MX-VL820U offers installation flexibility with features like Horizontal and Vertical lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection installation.

Producing up to 8,200 ANSI lumens and using LCD Display technology, the MX-VL820U is capable of powerful, crisp, colour accurate images regardless of ambient light in the room.


High-Brightness 3LCD WUXGA Laser Projector 8200 Lumens For Large Venues 0

High-Brightness 3LCD WUXGA Laser Projector 8200 Lumens For Large Venues 1

Key Features

* 8,200 center lumens bright with 80% uniformity and a 5,000,000:1 contrast ratio.
* High brightness and contrast with long life 20,000 hour Laser + Phosphor Light Source.
* 10-bit color processing, for superior color reproduction.
* Native WUXGA resolution. Compatible with inputs up-to UXGA, WUXGA and 4K.
* Supports analog and digital video input in all color standards up-to 1080p.
* Convenient mid-range (1.6:1) manual zoom and focus lens.
* Horizontal, Vertical & Corner Keystone Correction.
* Pincushion/Barrel & 6 point Geometric Correction.
* Horizontal & Vertical Manual Lens Shift. Wired network control.
* Compatible with Crestron RoomView & AMX Device Discovery Technology.



The body is equipped with an outstanding 16W built-in speaker, making the sound louder and the meeting more vivid.

High-Brightness 3LCD WUXGA Laser Projector 8200 Lumens For Large Venues 2

Parameters



8200 Lumen 3LCD Laser Projector
Key parts
  Model No. MX-VL820U
Brightness(Lumen) 8200
Resolution WUXGA
Light source NICHIA LASER
Overall Spec
Panel Display Panel 3x0.64" with MLA
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Light source lifetime Full Normal/Normal mode 20000hrs
ECO1 mode 30000hrs
ECO2 mode 30000hrs
Projection Lens F 1.58-2.02
f 15.3mm-24.6mm
Zoom/Focus Manual
Throw Ratio 1.08 (wide)-1.76 (tele)
Zoom Ratio 1.6
Screen size 30-300 inch
Lens Shift V: + 60%, H: +/- 29%
CR Contrast Ratio
(FOFO)		 5000000:1
Noise Noise(dB) *1 39dB(Normal)
31dB(ECO1)
29dB(ECO2)
Uniformity Uniformity(Actual Min)
-JISX6911		 80%
AR Aspect Ratio Native:16:10
Compatible: 4:3/16:9
Terminal(I/O port)
Input VGA *1
HDMI 1.4B(IN) *2
USB-A *1
USB-B *1 (Display)
RJ45 *1 (Display)
HD BaseT *1(Optional)
Audio in
(mini jack,3.5mm)		 *1
Output VGA *1
Audio out
(mini-jack,3.5mm)		 *1
Control RS232 *1
RJ45 *1 (Control)
USB-B *1 (For upgrade)
General Spec
Audio Speaker 16W*1
Dust filter W/Filter
Filter Lifetime 8000h
Power Consumption Power Requirements 100~240V@ 50/60Hz
Power Consumption
(Normal) (Max)		 425
Power Consumption
(ECO1) (Max)		 285
Power Consumption
(ECO2) (Max)		 235
ECO Standby Mode
Power Consumption		 <0.5W
Temp.&Humidity Operating Temp. 0m≤Altitude≤1700m,
Ambient 0°C~50°C
1700m＜Altitude＜3000m,
Ambient 0°C~40°C
Operating humidity. 20-85%
Store Temp. -10 to 50°C
High altitude 0~3000m
Other Functions
Keystone Keystone Correction
(Lens@center)		 V: ±30°
H:±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
4 Corner Correction
Grid image tune
OSD Languages 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazakh, Vietnamese ,Thai, Farsi
LAN Control LAN Control-RoomView
(Crestron)		 Yes
LAN Control--AMX Discovery Yes
LAN Control--PJ Link Yes
Scanning Frequency H-Synch Range 15~100KHz
V-Synch Range 24~85Hz
Display Resolution Computer Signal Input VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW setting Auto Setup INPUT SEARCH, AUTO PC ,Auto Keystone
Blank Yes
Suspend Yes(5 minutes no signal as default)
Picture mode Dynamic, Standard, Cinema,
Colorboard,sim-DICOM ,Blackboard(Green)
Cooling time 0s,normal,30s
Auto Ceiling Yes
D-Zoom 1~33
Others 360° projection Yes
Edge Blending Yes
Dimension&Weight
  Product Size (mm) 405 (W)*358(D)*137(H)
Net. Weight (KG) ~7.9KG
Packaging Size(mm) 510 (W)*498(D)*260(H)
Gross. Weight (KG) ~10.4KG
Accessory
  Manual Languages Chinese, English
Standard Accessaries Power cord, HDMI cable, and Remote control
  Warranty 3years





Company profile:

We are a manufacturer of projectors in China, supplying Laser Projector, 3LCD Projector, DLP Projector, LCD Short Throw Projector, Laser Short Throw Projector

OEM is available; welcome to contact us to chat about your requirements.

Small MOQ, 1 pc is available.

Website: www.smxdisplay.com
