300'' Electric Projector Screen 16:9 Projection Tab Tensioned Motorized Screen

Basic Information
Place of Origin: China
Brand Name: SMX
Certification: CE/ROHS
Model Number: SX300EH
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: Packed in carton firstly, and then reinforced with Edge board and plastic bag for outer packing
Delivery Time: 5-10 Days
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Detail Information
Product Name: Motorized Tab Tensioned Screen Screen Fabric: HD Flexible White
Housing Material: Aluminum Size: Custom Sizes
Motor Type: Silent Tubular Motor Voltage: 110-240V
Remote Controller: RF/IR/12V Trigger Color: White
High Light:

ROHS Electric Projector Screen

,

300'' Tab Tensioned Motorized Screen

,

Flexible White Tab Tensioned Motorized Screen


Product Description

300 Inch Electric Projector Screen tab-tensioned Motorized Projection Screen for outdoor

Production description


Large electric projector screen

Large stage electric screen is suitable for high definition playing or presentation in location with large space. Screen is stable with metal casing and heavy-duty tubular motor, ensures the screen remain flat and the movement smooth. Durability and functionality can be counted on for use in all large venue applications. Suitable for venues such as theater halls, large performance, auditoriums, command centers etc. Can be installed by wall mounted, ceiling hanged.



Seamless Fabric

View area size up to 5 meters in height(means size can be up to 300” format 4:3 or 400” format 16:9)could be seamless. Seamless fabric ensures the quality of high definition playing or presentation



Remote control can control either the screen or the default extended height. The range of control is long enough to 25 meters. With a combination of up, down and stop press can conduct all movement of the screen

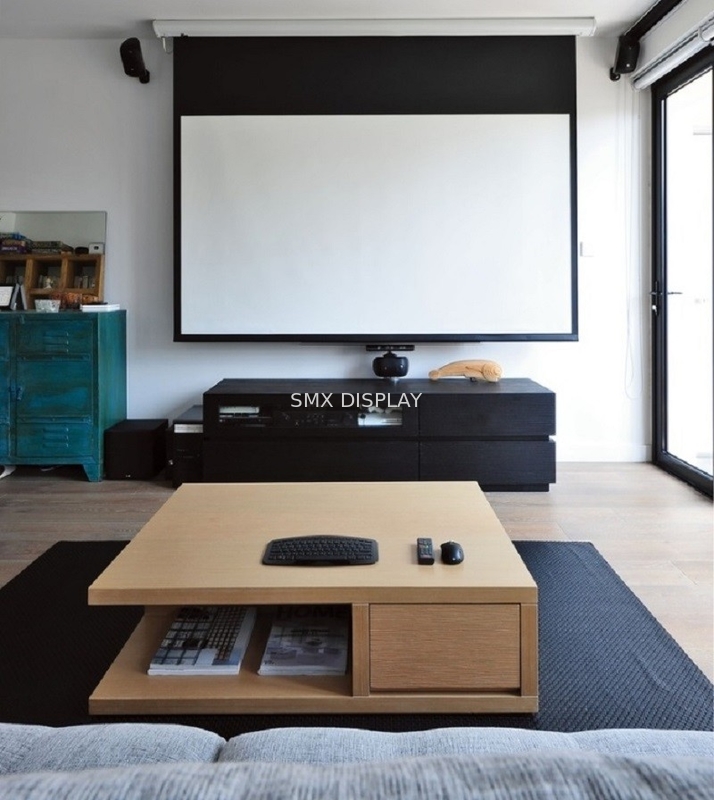

300'' Electric Projector Screen 16:9 Projection Tab Tensioned Motorized Screen 0



Features of Electric Screen


» High quality spraying painting metal casing is shaped by punch machine, strong and elegant, white or black color is available

» Use the best quality screen fabric to ensure perfect flat surface

» Equipped high power tubular motor to ensure big power and the long life of screen

» Ease of installation, wall or ceiling mounted are available

» Standard in-line switch control system with high stability and switch includes, Remote controller is optional to control the screen friendly



Format
Diagonal Size(Inch)
View Size(W*H)mm
Top border(MM)
Left/Right border(MM)
Bottom border(MM)
Housing size(L*D*H)MM
4:03
180
3660*2750
200
100
70
4160*120*150

200
4060*3050
200
100
70
4560*120*150

250
5080*3810
200
100
70
5580*160*200

300
6100*4580
200
100
70
6600*230*280

320
6500*4880
200
100
70
7000*230*280

350
7110*5330
200
100
70
7610*230*280

400
8130*6100
200
100
70
8630*300*360
16:09
180
3990*2250
200
100
70
4490*120*150

200
4430*2490
200
100
70
4930*120*150

250
5540*3120
200
100
70
6040*160*200

300
6640*3740
200
100
70
7140*230*280

320
7090*3990
200
100
70
7590*230*280

350
7750*4360
200
100
70
8250*230*240

400
8860*4980
200
100
70
9360*300*360
16:10
180
3870*2420
200
100
70
4360*120*150

200
4300*2690
200
100
70
4790*120*150

250
5380*3360
200
100
70
5870*160*200

300
6450*4030
200
100
70
6940*230*280

350
7530*4710
200
100
70
8020*230*280

400
8600*5380
200
100
70
9090*300*360



Main applications


Large Cinema,Multiple-function Hall,Auditorium,Hotel,Large Stage,Conference Room,Exhibition Center,Army System etc.



Fabrics are available on our Large Electric Screen


» Fiberglass Matte White
» HD Flexible White(with tab tensioned system)
» HD Flexible Rear Screen(with tab tensioned system)
» HD 3D Silver Screen(with tab tensioned system)
» HD Perforated Screen(with tab tensioned system)
» HD 3D Holo Gauze Screen(with tab tensioned system)





Silent Tubular Motor


Super silent tubular motor is popular for higher quality projection screens and roller blinds, bringing private and quiet quality living environment.

300'' Electric Projector Screen 16:9 Projection Tab Tensioned Motorized Screen 1



Company Profile


Shenzhen Smx Display Technology Co.,Ltd is a professional manufacturer specializing in R&D, manufacture and export UHD Projection Screens, Stage Holographic System, 180°/270°/ 360° Hologram Display Showcase, Large Pyramid Holographic Display and other projection related products.

Our products include,

Projection Screen: Customized Large Screen, Motorized Screen, Manual Screen, Tripod Screen, Motorized Tab-tensioned Screen, Fixed Frame Screen, Curved Fixed Screen, Fast-fold Screen, Eyelets Screen, Rear Screen etc.
