| Place of Origin: | Guangdong |
|---|---|
| Brand Name: | SMX |
| Certification: | ROHS |
| Model Number: | FF150H |
| Minimum Order Quantity: | 5 pcs |
| Price: | Negotiation |
| Packaging Details: | Professional Carton Packing |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs monthly |
| Diagonal: | 150'' | Screen Fabric: | Flexible HD Grey |
|---|---|---|---|
| Gain: | 1.0 | View Angle: | 165 ° |
| Frame: | 8cm Aluminum | Application: | Home Cinema,Display Hall,Museum |
| High Light: | fixed frame projection screen,home theatre projection screen |
||

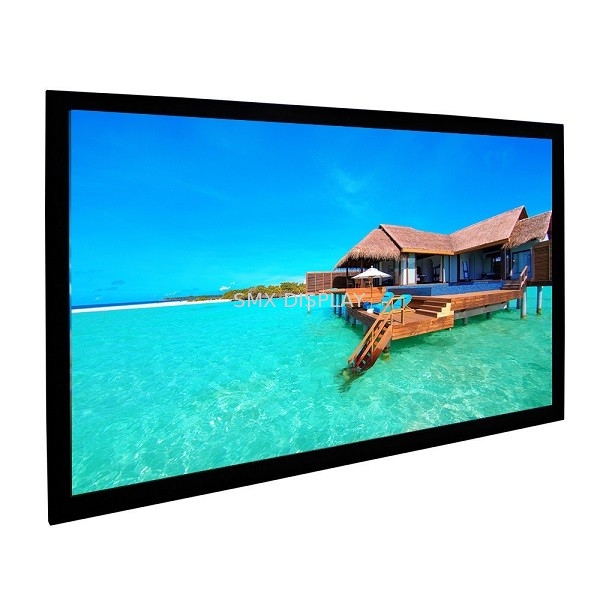

Custom 92 inch fixed projector screen for digital cinemas Aluminum frame
Fixed Frame Screens are perfect for cinemas or any places where you need to fix the screen.
Fixed screens are of the highest versatility, its easy and fabric spring system enable users to set up
in seconds. Perfectly tensioned screen fabric ensures the very flat screen surface. The screen is widely
used in home cinemas, digital cinemas etc.
Features of Fixed Frame Screen
＊ Aluminum frame with black velvet borders to absorb over projected images
＊ Use HD flexible screen fabric to ensure perfect flat surface
＊ Special angular connections, frames can be assembled
＊ Easy to attach screen fabric to the frame by spring system
＊ Ease of installation, mount to wall come with brackets
＊ Brackets hidden after screen installed
＊ Floor stands can be available for large frame screens
＊ 8Cm,10Cm,15Cm width frame for choose
Fabrics are available on our Fixed Frame Screen
HD Flexible White
HD Flexible Grey
3D Flexible Silver
HD Flexible Rear Gray
Perforated White
3D Perforated Silver
Acoustically Transparent Woven
Main applications
Home Cinema,Digital Cinema,Business presentations ,Entertainment venues etc
Screen Parameter(Custom Size is Available)
|
Model No. |
Size | Format | View Area | Length | Packing Size | Weight | ||
| Unit:mm | Unit:mm | Unit:cm | ||||||
| Inch | (W) | (H) | (W) | (H) | cm | Kgs | ||
| FFV84 | 84 |
4:3
|
1710 | 1280 | 1910 | 1480 | 207X21X16 | 19.00 |
| FFV92 | 92 | 1870 | 1400 | 2070 | 1600 | 222X21X16 | 21.00 | |
| FFV100 | 100 | 2030 | 1520 | 2230 | 1720 | 239X21X16 | 22.00 | |
| FFV120 | 120 | 2440 | 1830 | 2640 | 2030 | 280X21X16 | 26.00 | |
| FFV150 | 150 | 3050 | 2290 | 3250 | 2490 | 337X21X16 | 30.00 | |
| FFV180 | 180 | 3660 | 2750 | 3860 | 2950 | 398X21X16 | 35.00 | |
| FFV200 | 200 | 4060 | 3050 | 4260 | 3250 | 438X21X16 | 42.00 | |
| FFH84 | 84 | 16:9 | 1860 | 1050 | 2060 | 1250 | 228X21X16 | 19.00 |
| FFH92 | 92 | 2040 | 1150 | 2240 | 1350 | 246X21X16 | 21.00 | |
| FFH100 | 100 | 2210 | 1240 | 2410 | 1440 | 264X21X16 | 23.00 | |
| FFH106 | 106 | 2350 | 1320 | 2550 | 1520 | 278X21X16 | 24.00 | |
| FFH120 | 120 | 2660 | 1500 | 2860 | 1700 | 308X21X16 | 27.00 | |
| FFH133 | 133 | 2950 | 1660 | 3150 | 1860 | 327X21X16 | 29.00 | |
| FFH135 | 135 | 2990 | 1680 | 3190 | 1880 | 331x21x16 | 31.00 | |
| FFH150 | 150 | 3320 | 1870 | 3520 | 2070 | 364x21x16 | 32.00 | |
| FFH180 | 180 | 3990 | 2240 | 4190 | 2440 | 431x21x16 | 37.00 | |
| FFH200 | 200 | 4430 | 2490 | 4630 | 2690 | 475x21x16 | 45.00 | |
| FFW100 | 100 | 2.35:1 | 2340 | 1000 | 2540 | 1200 | 274x21x16 | 23.00 |
| FFW106 | 106 | 2480 | 1060 | 2680 | 1260 | 291x21x16 | 26.00 | |
| FFW120 | 120 | 2810 | 1200 | 3010 | 1400 | 324x21x16 | 28.00 | |
| FFW133 | 133 | 3110 | 1320 | 3310 | 1520 | 343x21x16 | 30.00 | |
| FFW135 | 135 | 3160 | 1350 | 3360 | 1550 | 348x21x16 | 32.00 | |
| FFW150 | 150 | 3510 | 1490 | 3710 | 1690 | 383x21x16 | 35.00 | |
Size and specifications are subject to the actual product size, will be changed without notice
