| Certification: | RoHS&CE |
|---|---|
| Model Number: | MX-VL703Y |
| Minimum Order Quantity: | 1pc |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Piece/Pieces Per Month |
| Place Of Origin: | Guangdong, China | Brand Name: | SMX |
|---|---|---|---|
| Brightness: | 7000 Lumens | Resolution: | 1920x1200P WUXGA |
| Projection Distance: | 30-300 Inch | Contrast Ratio: | 5000,000:1 |
| Light Source: | LASER Light | Feature: | Internet Ready, Built-In Speakers, SDK Available, |
| Filter Life Time: | 80000 H | Use: | Business & Education, Home, Large Indoor/ Outdoor Scene |
| High Light: | 3LCD 3D Laser Projector,7000 Lumens Projector For Projection Mapping,3D Laser Projector For Projection Mapping |
||

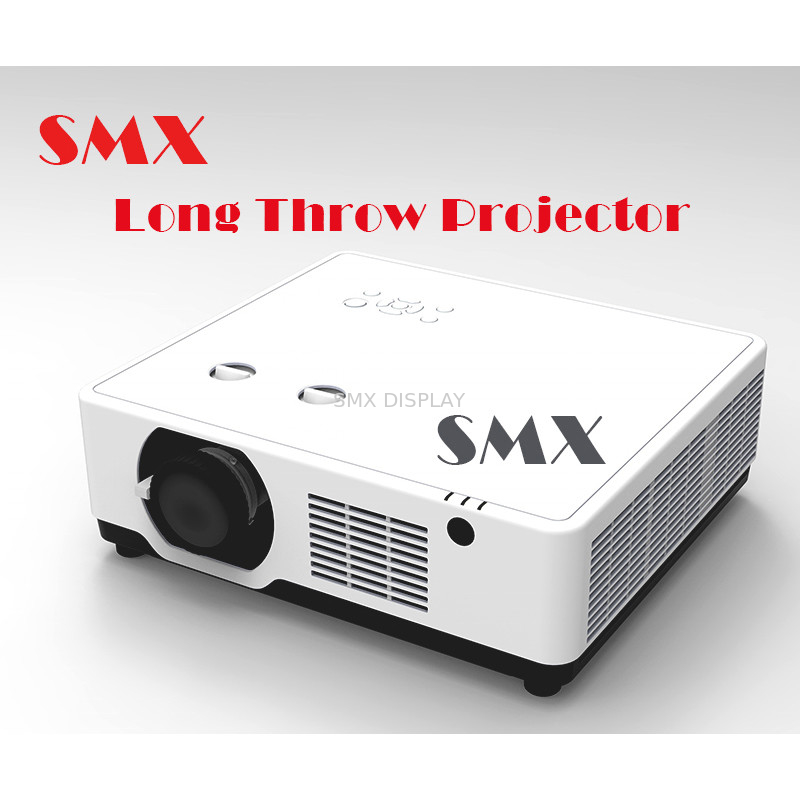

Manufacturer 3LCD 3D Laser Projector 7000 7K Lumens Projector For Projection Mapping
Large Projection Area , high image quality
The engineering series also uses 3LCD high-end display chips, 7000 ANSI lumens and high brightness, 50000:1 high contrast, high resolution, covering full HD, The details are more obvious, and the strong sense of immersion can experience a comfortable visual atmosphere even in a wide space.
Features
◆ 3LCD tech, 30,000 hours Led Lamp of real life time
◆ High brightness 6500 Lumens
◆ High contrast (5000000:1)
◆ Multiple Interfaces (HDMI, USB-A, HD BaseT, VGA, 3.5mm, RS232, RJ45, USB-B)
◆ V&H:±30°/Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction/Grid image tune
◆ Optional Resolution: WUXGA/WXGA/XGA, all support 4K
◆ Aspect ratio: 16:9/16:10/4:3
◆ Support Mirror&Wireless&Airplay etc.
◆ Best picture quality
Real Native Full HD 1080P Resolution and Super Brightness 7000Lumens,HD model support 2K 4K
Full HD 1080P Projector , this wifi projector adopted upgraded technology with super bright LEDs and LCD display, 100%+Brightness and 20000:1 high contrast ensure wider color gamut and clearest images for indoor and outdoor movie watching.
Mobile office, business meeting
The projector is a good partner in business, we can make a ppt speech for the customer,and we can point at the file and the video whenever and wherever possible.
Physical Display
| Specification for 7000 Lumen Laser Projector | ||
| Model | MX-VL703Y | |
| Brightness | Brightness (Ansi Lumens) |
7000 |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64” with MLA |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Light source Life time |
FullNormal/Normal Model | 20000hrs |
| ECO1 Mode | 30000hrs | |
| ECO2 Mode | 30000hrs | |
| Projection Lens |
Lens Vendor | RICOH Lens |
| F | 1.5~2.08 | |
| f | 17.2~27.7mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.2(wide)-2.0(tele) | |
| Zoom Ratio | 1.6 | |
| Screen Size | 30-300 inch | |
| Lens Shift | V:＋60%～0%, H:±29% |
|
| CR | Contrast Ratio (FOFO) |
5000000:1 |
| Noise | Noise(dB) | 38dB(Normal) 30dB(ECO1) 28dB(ECO2) |
| Uniformity | Uniformity(Actual Min) -JISX6911 |
80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
