Product Details
Place of Origin: China
Brand Name: SMX
Certification: CE/ROHS
Model Number: TT150W
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly, and then reinforced with Edge board and plastic bag for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Housing Material: |
White/Black Aluminum |
Size: |
150'' |
Motor Type: |
Silent Tubular Motor |
Screen Fabric: |
Flexible White/Grey |
Remote Controller: |
RF/IR/12V Trigger |
Warranty: |
3 Years |
Housing Material: |
White/Black Aluminum |
Size: |
150'' |
Motor Type: |
Silent Tubular Motor |
Screen Fabric: |
Flexible White/Grey |
Remote Controller: |
RF/IR/12V Trigger |
Warranty: |
3 Years |

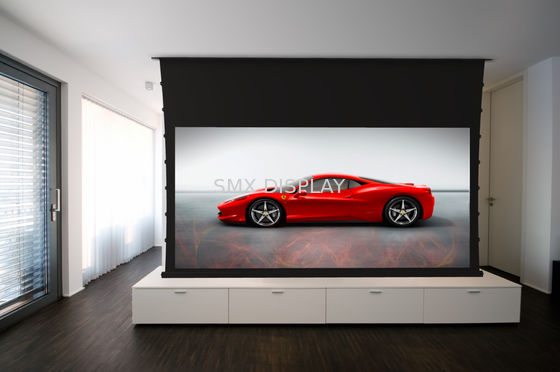

150'' Tensioned Ceiling Recessed Motorized Projection Screen With Remote Control
Description:
Motorized Tab-Tensioned Screens are perfect for home theater or high level entertainment and business centers. Tensioned screen is one of our best selling screen specially designed tension feature for prefect viewing angle throughout the entire screening process. Its side tensioned system ensures the perfect flat surface. The screen is widely used in home cinema, hotels, business centers, meeting rooms, entertainment centers etc
1. Elastic auto tighten system can completely balance the surface tension of every screen lattice, making the screen viewing area as smooth as the mirror surface and avoid “V” shape
2. High quality aluminum housing, unique design for your modern household
3. Use HD flexible screen fabric to ensure the screen to be best flat surface
4. Silent heavy-duty Tubular motor to ensure the screen stable and long using life, low noise keeps silent in the room
5. Ease of installation, tracking wall mounted or ceiling hanged installation way
6. Standard with Remote Controller , the whole screen and the application height are preset by the remote. The effective control range can be up to 25 meters, with a combination of up, down and stop press can conduct all movement of the screen
7. 12V trigger is available, when projector is power on, the screen will be
Fabrics are available on our Tensioned Screen
HD Flexible White
HD Flexible Grey
3D Flexible Silver
HD Flexible Rear Gray
Perforated White
3D Perforated Silver
Acoustically Transparent Woven
Specifications:
|
Model No. |
Size |
Format |
View Area(mm) |
Drop Black Border(A3) |
Length of Casing(L) |
Packing Size(LxWxH) |
Weight |
|
|
(W) |
(H) |
|||||||
|
Inch |
Unit: mm |
Unit: mm |
Unit: mm |
Unit: mm |
Unit: Kgs |
|||
|
TTV84 |
84 |
4:3 |
1710 |
1280 |
400 |
2005 |
2135x21x16 |
18.00 |
|
TTV92 |
92 |
1870 |
1400 |
400 |
2165 |
2295x21x16 |
22.00 |
|
|
TTV100 |
100 |
2030 |
1520 |
400 |
2325 |
2455x21x16 |
24.00 |
|
|
TTV120 |
120 |
2440 |
1830 |
400 |
2735 |
2865x21x16 |
26.00 |
|
|
TTV150 |
150 |
3050 |
2290 |
400 |
3345 |
3475x21x16 |
34.00 |
|
|
TTH84 |
84 |
16:9 |
1860 |
1050 |
750 |
2155 |
2285x21x16 |
18.00 |
|
TTH92 |
92 |
2040 |
1150 |
750 |
2335 |
2465x21x16 |
23.00 |
|
|
TTH100 |
100 |
2210 |
1240 |
750 |
2505 |
2635x21x16 |
25.00 |
|
|
TTH106 |
106 |
2350 |
1320 |
750 |
2645 |
2775x21x16 |
26.00 |
|
|
TTH120 |
120 |
2660 |
1500 |
650 |
2955 |
3085x21x16 |
28.00 |
|
|
TTH133 |
133 |
2950 |
1660 |
600 |
3245 |
3375x21x16 |
32.00 |
|
|
TTH135 |
135 |
2990 |
1680 |
600 |
3285 |
3415x21x16 |
34.00 |
|
|
TTH150 |
150 |
3320 |
1870 |
450 |
3615 |
3745x21x16 |
35.00 |
|
|
TTC100 |
100 |
2.35:1 |
2340 |
1000 |
750 |
2635 |
2765x21x16 |
24.00 |
|
TTC106 |
106 |
2480 |
1060 |
750 |
2775 |
2905x21x16 |
26.00 |
|
|
TTC120 |
120 |
2810 |
1200 |
750 |
3105 |
3235x21x16 |
28.00 |
|
|
TTC133 |
133 |
3110 |
1320 |
750 |
3405 |
3535x21x16 |
33.00 |
|
|
TTC135 |
135 |
3160 |
1350 |
750 |
3455 |
3585x21x16 |
34.00 |
|
|
TTC150 |
150 |
3510 |
1490 |
750 |
3805 |
3935x21x16 |
36.00 |
|
Size and specifications are subject to the actual product size, will be changed without notice
Competitive Advantage:
Unique Knob Tensional Adjustment Device
With the Unique Knob Tensional Adjustment Device and the Elastic Auto Tighten System, the “V” shape wrinkle that general screen occurs will be eliminated, the screen fabric will be made as smooth as the mirror surface, the tension adjustment will achieve easily, what’s more the screen flatness could be easily adjusted without any tools
Silent Tubular Motor
Super silent tubular motor is popular for higher quality projection screens and roller blinds, bringing private and quiet quality living environment.
Installations
Multifunctional Tracking Mounting Bracket(Wall mounted and ceiling hanged)
These brackets have the ability to be wall mounted or ceiling hanged. The floating L-bracket design allows for horizontal adjustment and therefore the brackets can be fixed at any preferred point on the screen casing. Tightening screens ensure the screen remains locked and secure
