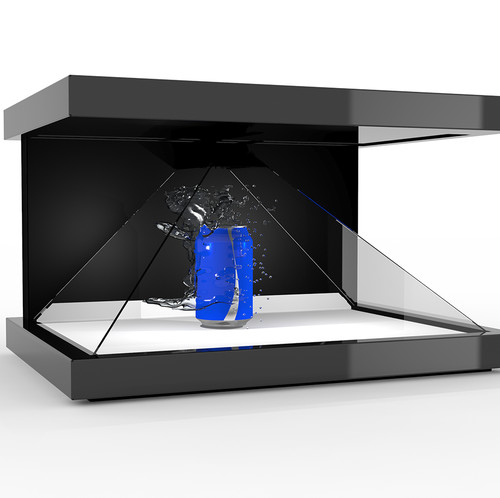

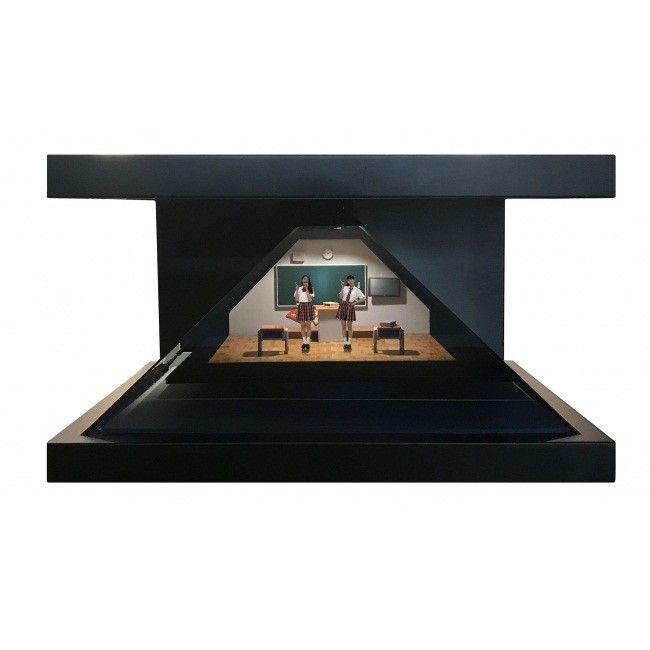

22 Inch Holographic Pyramid Display Showcase 3D Hologram Virtual Technology

Basic Information
Place of Origin: China
Brand Name: SMX
Certification: CE&ROHS
Model Number: SH18032
Minimum Order Quantity: 1 set
Price: 1500 usd per set
Packaging Details: Flight case
Delivery Time: 5-8 working days
Payment Terms: D/P, Western Union
Supply Ability: 100 sets per month
Detail Information
Size: 22 Inch Showcase Size (WxDxH/cm): 57x38x34 Cm
Packing Size: 63x46x44 Cm Gross Weight: 38 Kg
Package: Flight Case
High Light:

22 inch Holographic Pyramid Display

,

flight case Holographic Pyramid Display

,

Virtual Holographic Pyramid Showcase


Product Description

Description



The holographic pyramid imaging system uses a mid-air imaging system that suspends the three-dimensional image in the real scene of the cabinet. The holographic phantom imaging system is composed of a cabinet, a spectroscope and a video playing device. Based on the principle of spectroscopic imaging, special processing of the three-dimensional model is performed on the real shot of the product, and then the photographed 3D image of the product or the 3D model of the product is superimposed into the scene , Constitute the combination of static and dynamic product display system. Does not require people to wear any polarizing glasses, can enjoy 3D phantom stereo display effects, giving a visual impact, with a strong sense of depth.

1, good vision: the image floating in the air, sometimes the image is in sight, giving people the feeling that you can touch it.

2, online version function: transfer the holographic video into MP4, WMV formats released to the machine through the server carousel programs.

3, interactive computer version: Tablet or touch the display and holographic devices through the combination of software to customers the selective display of interactive exhibits.

4, attractive, good effect: strong visual effects, more easier to attract customers eye to have unforgettable results.

5, can achieve differentiated marketing: help to enhance the brand and product quality, differentiated marketing.

6, Strong three-dimensional effect : Sometimes the vision will be brought to the distant sky, suddenly far or near, flickering, unpredictable.

7, TF card loop playback: transfer the holographic video into MP4, MPG formats into the U disk or SD card, plug in the machine, you can loop or remote control selection.



22 Inch Holographic Pyramid Display Showcase 3D Hologram Virtual Technology 0



Sepcifications



Model

180--22"

SH18022

180--32"

SH18032

180--42"

SH18042

180--55"

SH18055

180--70"

SH18070

Material Sheet Metal Sheet Metal Sheet Metal Sheet Metal Sheet Metal
Pyramid Tempered Hologram Glass Tempered Hologram Glass Tempered Hologram Glass Tempered Hologram Glass Tempered Hologram Glass
Showcase size (WxDxH/cm) 52.5x39x39 88x46x 57 95x60 x 67 128.5x90x84.5 108x182x206
Resulution 1920x1080 Full HD 1920x1080 Full HD 1920x1080 Full HD 1920x1080 Full HD 1920x1080 Full HD
Voltage AC110 - 240V (50Hz - 60Hz) AC110 - 240V (50Hz - 60Hz) AC110 - 240V (50Hz - 60Hz) AC110 - 240V (50Hz - 60Hz) AC110 - 240V (50Hz - 60Hz)
Video format MP4,AVI,WMV,JPEG MP4,AVI,WMV,JPEG MP4,AVI,WMV,JPEG MP4,AVI,WMV,JPEG MP4,AVI,WMV,JPEG
Input Up to 32GB Up to 32GB Up to 32GB Up to 32GB Up to 32GB
Input Port USB/VGA,HDMI USB/VGA,HDMI USB/VGA,HDMI USB/VGA,HDMI USB/VGA,HDMI
Working temperature 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C
Audio Built-in Speaker 5Wx2 Built-in Speaker 10Wx2 Built-in Speaker 10Wx2 Built-in Speaker 10Wx2 Built-in Speaker 10Wx2
Led Light Adjustable Led Light Optional Adjustable Led Light Optional Adjustable Led Light Optional Adjustable Led Light Optional Adjustable Led Light Optional
Light Button YES YES YES YES YES
Net weight 28kg 35kg 42kg 60kg ~100kg
Gross weight 32kg 40kg(90kg) 55kg (160kg) 75kg ~100kg
Package Flight Case Flight Case Flight Case Flight Case Flight Case
Remark Stand feet is optional Stand feet is optional Stand feet is optional Stand feet is optional Stand feet is optional



Features

  • Visually stunning product display
  • Combines holographic 3D content with physical products
  • Bright and free floating holographic picture quality
  • Superior exposure and branding
  • "Plug and Play" easy setup
  • High reliability and long lifetime for 24/7 use
  • Easy change of content by remote
  • Key protected door
  • Flight case package for save transportation
  • Available in different sizes: small, medium, large or custom
  • Slimmer and more elegant design
  • Full HD resolution
  • Built-in sound
  • Adjustable LED light
