Dome Cinema Curved Projection Screen , 4K Woven Fabric Circular Projection Screen

Basic Information
Place of Origin: China
Brand Name: SMX
Certification: ROHS,CE
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: Packed in carton firstly, and then reinforced with Edge board and plastic bag for outer packing
Delivery Time: 7-10 Days
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Detail Information
Application: 4K Cinema Frame Material: Aluminum Frame With Black Velvet Border
OEM/ODM: Yes Available Size: Custom Sizes
Screen Fabric: Acoustically Perforated, 4K Woven Fabric Warranty: 3 Years
High Light:

curved movie screen


curved fixed frame projection screen

Product Description

multi-channel curved projection screen is custom made upon your request. Any degree and shape of projection screen is available for single or multi-projector displays.

♦ 180 degree, 360 degree, and any other custom degree curved projection screen

♦ Flight simulator screen, Driving simulator screen

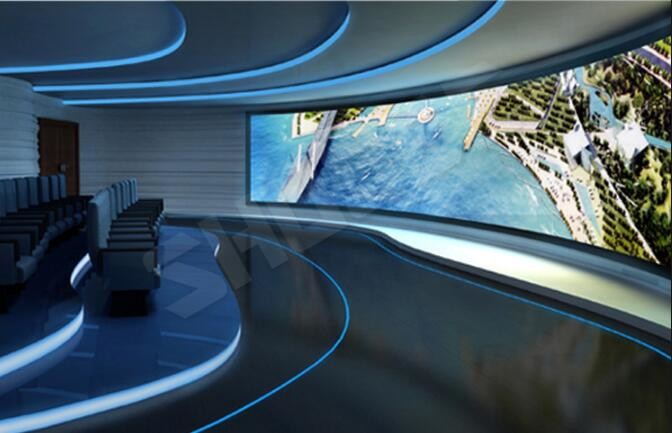

  Dome Cinema Curved Projection Screen , 4K Woven Fabric Circular Projection Screen 0


Features of Fixed frame Screen

» Gives a sense of immersion

» For Cinema

» For Visualization Applications

» For Multi-channel Simulation Displays

» Excellent for museum or exhibitions

» Excellent for training simulators : flight simulators, driving simulators, military simulators



    Dome Cinema Curved Projection Screen , 4K Woven Fabric Circular Projection Screen 1


· Multiple channel projection displays

· Custom-made

· Spring-tensioned Screen/ On-site Assembly


Screen Parameter



Description HD Flexible White HD Flexible Gray Flexible Perforated 3D Silver(Flexible) 3D Silver(Hard) Rear Gray(Flexible )
Brightness(Gain) 1.0 0.9 1.2 2.5-2.8 0.8-4.0 3.0
View Angle 160 165 160 120 70-110 120
Dimension Height Up to 4,500 mm Up to 3,200 mm Up to 2,000 mm Up to 3,600 mm Up to 2,500 mm Up to 4,800 mm
Width No Limit(Depending on # of projectors)
Material(Color) White Gray White/Silver Silver Silver Dark Gray
Seamless Yes Yes Yes Yes Yes Yes
Frame Width 8CM,10CM,15CM
3D Capability No No Silver with 3D Yes Yes No
Applications Cinema, Video Presentation Cinema Cinema, Acoustically Transparent Cinema, Simulation Cinema, Simulation Rear Projection
Remarks Floor Stand is optional


Competitive Advantage:

1. The curve design ensures that light travels the same distance to reach any point of the screen thus creating a properly proportioned image.


2. A curved screen design improves image depth and perception while increasing brightness uniformity, the way the roadshow cinemas do it.

3. Curved screens are for enhancing the performance of Cinemascope projection

4. More Accurate, Realistic, A feast for Your Eyes
Based on the feature of eyeball to achieve high definition, and balance the focus of screen with purpose of achieving perfect effect between screen image and visual experience.

5. More Uniform, Detailed, Taking you into your Film World
Based on the projector's sphere to make the image uniform and perfectly focused.
