Customized 180 ° / 360 ° Curved Projector Screen With 3 Years Warranty

Basic Information
Place of Origin: China
Brand Name: SMX
Certification: ROHS,CE
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: Packed in carton firstly, and then reinforced with Edge board and plastic bag for outer packing
Delivery Time: 7-10 Days
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Detail Information
Application: 4K Cinema Frame Material: Aluminum Frame With Black Velvet Border
OEM/ODM: Yes Available Size: Custom Sizes
Screen Fabric: Acoustically Perforated, 4K Woven Fabric Warranty: 3 Years
High Light:

circular projection screen


curved movie screen

Product Description

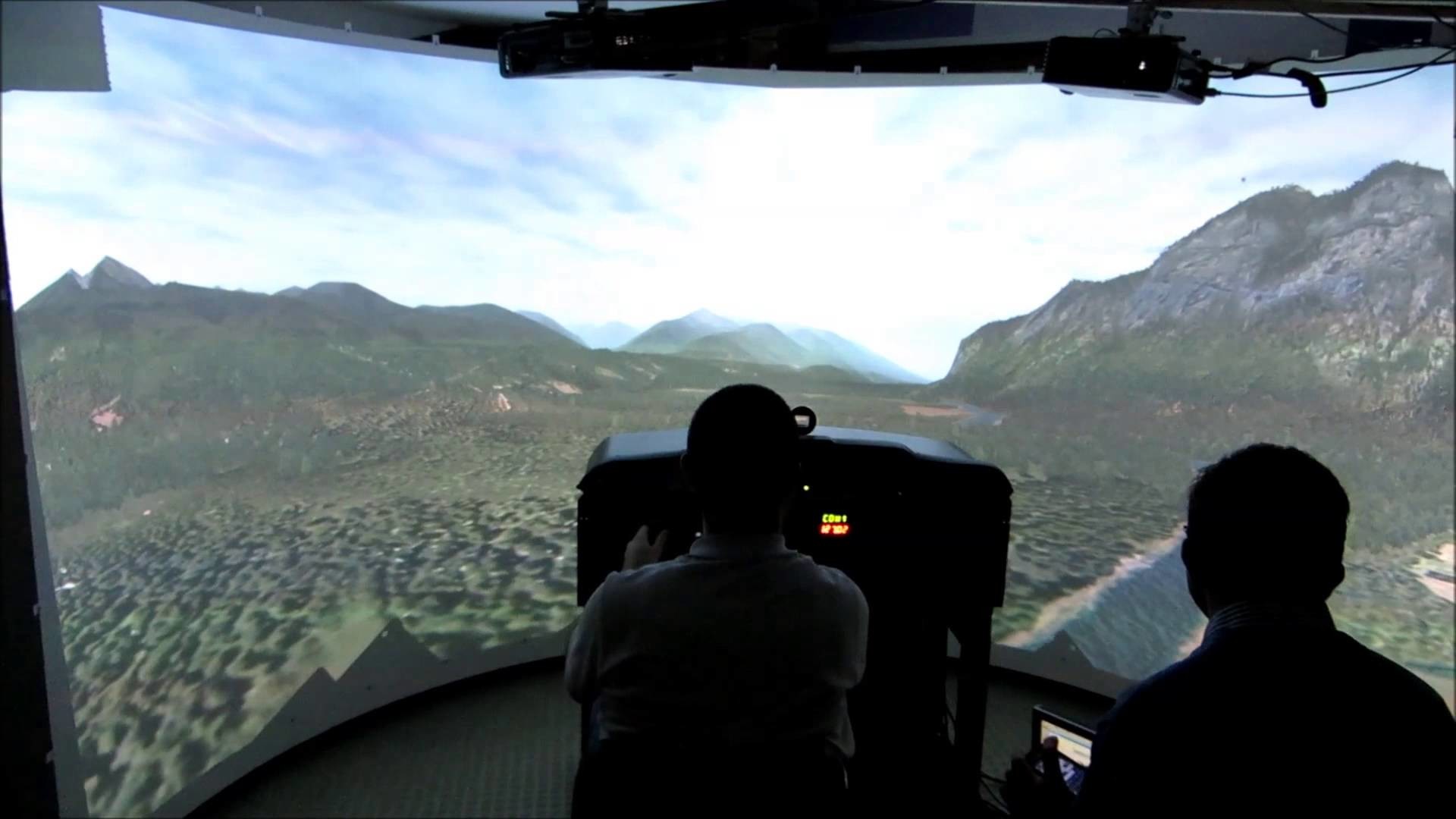

Customized 180°/360° Large Curved Projector Screen Flight Simultaion Projection with stand

Customized large curved screen

We are professionally manufacture curved screens that for active and passive 3D simulator screens and simulation displays. Curved Frame Screen is a customized product that is made-to-order for each customer. For the curved screen, a unique material is applied to the frame that is specially manufactured to ensure that the screen has no creases and high smoothness. Any degree and shape of the screens are available for single or multi-projector displays. All curved screens are available in a design format, custom sizes, FOV, and Radius

Curved Front Projection
We create curved displays from rigid substrates or from flexible screen material stretched over specially designed frames. Projector mounts can be constructed around virtually any cockpit or cab and set up with projectors edge-blended to give a near perfect seamless display around a complete 180° field of view.

Segmented Front Projection
Using rigid or flexible screens we can create multiple channel systems to give the possibility of displays with up to 360° field of view. In these applications, the projectors use hard edge blending, but the images can be exactly positioned to leave only a hairline join.


  Customized 180 ° / 360 ° Curved Projector Screen With 3 Years Warranty 0


» Gives a sense of immersion

» For Cinema

» For Visualization Applications

» For Multi-channel Simulation Displays

» Excellent for museum or exhibitions

» Excellent for training simulators : flight simulators, driving simulators, military simulators



» Cinema

» Museums, Theme Parks, Galleries

» Gaming, Entertainment

» Control Room

» Training Simulators (Flight Simulators, Driving Simulators, Military Simulators)

» Government Projects

» Education

    Customized 180 ° / 360 ° Curved Projector Screen With 3 Years Warranty 1

Screen Parameter



Description HD Flexible White HD Flexible Gray Flexible Perforated 3D Silver(Flexible) 3D Silver(Hard) Rear Gray(Flexible )
Brightness(Gain) 1.0 0.9 1.2 2.5-2.8 0.8-4.0 3.0
View Angle 160 165 160 120 70-110 120
Dimension Height Up to 4,500 mm Up to 3,200 mm Up to 2,000 mm Up to 3,600 mm Up to 2,500 mm Up to 4,800 mm
Width No Limit(Depending on # of projectors)
Material(Color) White Gray White/Silver Silver Silver Dark Gray
Seamless Yes Yes Yes Yes Yes Yes
Frame Width 8CM,10CM,15CM
3D Capability No No Silver with 3D Yes Yes No
Applications Cinema, Video Presentation Cinema Cinema, Acoustically Transparent Cinema, Simulation Cinema, Simulation Rear Projection
Remarks Floor Stand is optional


Competitive Advantage:

1. The curve design ensures that light travels the same distance to reach any point of the screen thus creating a properly proportioned image.


2. A curved screen design improves image depth and perception while increasing brightness uniformity, the way the roadshow cinemas do it.

3. Curved screens are for enhancing the performance of Cinemascope projection

4. More Accurate, Realistic, A feast for Your Eyes
Based on the feature of eyeball to achieve high definition, and balance the focus of screen with purpose of achieving perfect effect between screen image and visual experience.

5. More Uniform, Detailed, Taking you into your Film World
Based on the projector's sphere to make the image uniform and perfectly focused.
