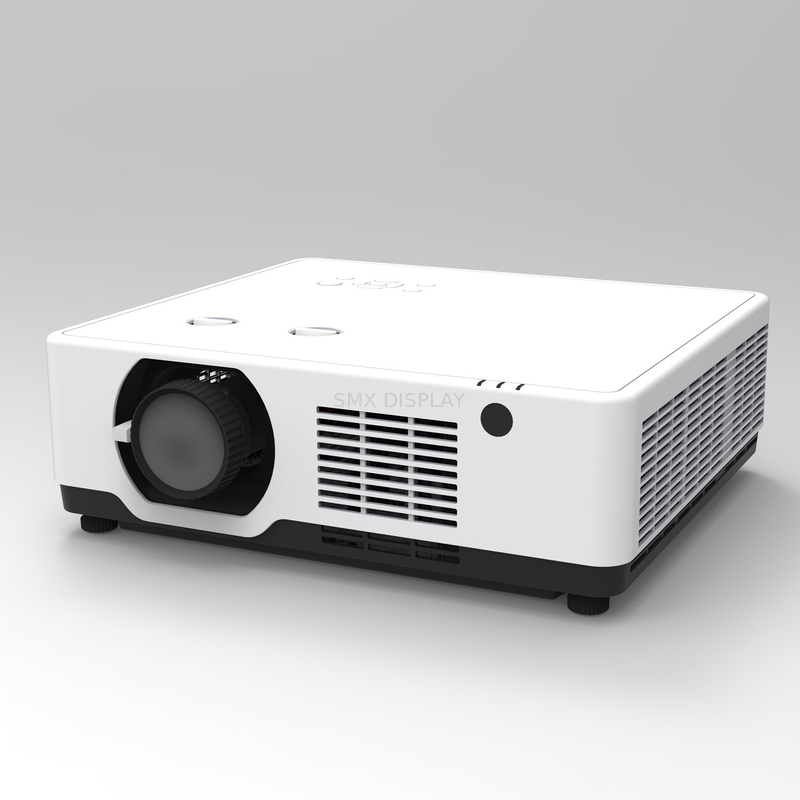

6500 High Lumen Video Laser Projector For 3D Mapping Projection

Basic Information
Place of Origin: China
Brand Name: SMX
Certification: RoHS&CE
Model Number: MX-VL650U
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: carton
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces Per Month
Detail Information
Product Name: Short Throw Laser Projector Style: 3LCD Laser Projector
Brightness: 6500 Lumens Light Source: LASER Light
Resolution: WUXGA (1920 X 1200) Projection Distance: 55 Inch~130 Inch
Feature: 3D Ready, Internet Ready, Built-In Speakers, SDK Available, Pocketable Zoom/Focus: Manual
Throw Ratio: 0.44:1 Warranty(Year): 1 Year
Display Panel: 3x0.64” With MLA
High Light:

High Lumen Video Laser Projector

,

6500 Lumen 3D mapping Projector

,

Video Laser Projector For 3D Mapping


Product Description

6500 lumen Large Venue Laser Projectors for Mapping Projection Immersive Projection.



6500 High Lumen Video Laser Projector For 3D Mapping Projection 0

Laser projectors are most valuable for their efficiency, as they fully utilize their light output and therefore do not need as
many resources in order to run. This means using less electricity, producing less heat, and even removing the heating period that some projectors need to start their operation.



Features

Specification for 6500 Lumen Laser Projector
Model MX-VL650U
Brightness Brightness
(Ansi Lumens)
6500
Overall Spec
Panel Display Panel 3x0.64” with MLA
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Light source
Life time
FullNormal/Normal Model 20000hrs
ECO1 Mode 30000hrs
ECO2 Mode 30000hrs
Projection
Lens
Lens Vendor RICOH Lens
F 1.5~2.08
f 17.2~27.7mm
Zoom/Focus Manual
Throw Ratio 1.2(wide)-2.0(tele)
Zoom Ratio 1.6
Screen Size 30-300 inch
Lens Shift V:+60%~0%,
H:±29%
CR Contrast Ratio
(FOFO)
5000000:1
Noise Noise(dB) 38dB(Normal)
30dB(ECO1)
28dB(ECO2)
Uniformity Uniformity(Actual Min)
-JISX6911
80%
AR Aspect Ratio Native:16:10
Compatible: 4:3/16:9
Terminal(I/O port)
Input VGA *1
HDMI 1.4B(IN) *2
USB-A *1
USB-B *1(Display)
RJ45 *1(Display)
DVI-D N/A
HD BaseT *1(Optional)
HD-SDI(3G-SDI) N/A
Video N/A
Audio in
(mini jack,3.5mm)
*1
Output VGA *1
HDMI 1.4B(OUT) N/A
Audio out
(mini-jack,3.5mm)
*1
Control RS232 *1
RJ45 *1 (Control)
USB-B *1 (For upgrade)
Wired Remote(IN) N/A
Wired Remote(OUT) N/A
General Spec
Audio Speaker 16W*1
Dust filter W/Filter
Filter Life time 8000h
Power
Consumption
Power Requeirements 100~240V@ 50/60Hz
Power Consumption
(Normal) (Max)
360
Power Consumption
(ECO1) (Max)
280
Power Consumption
(ECO2) (Max)
230
ECO Standby Mode
Power Consumption
<0.5W
Temp.&Humidity Operation Temp. 0 to 40°C
Operation Thumidity. 20-85%
Store Temp. -10 to 50°C
High Altitude 0~3000m
Other Functions
Keystone Keyston Correction
(Lens@center)
V: ±30°
H:±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
4 Corner Correction
Grid image tune
OSD Languages 26 languages:
English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi
LAN Control LAN Control-RoomView
(Crestron)
Yes
LAN Control-
AMX Discovery
Yes
LAN Control-
PJ Link
Yes
Scanning
Frequency
H-Synch Range 15~100KHz
V-Synch Range 24~85Hz
Display
Resolution
Computer Signal Input VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW setting Auto Setup INPUT SEARCH,AUTO PC,Auto Keystone
Blank Yes
Suspend Yes(5miniutes no singnal as default)
Picture Model Dynamic, Standard, Cinema,
Colorboard, sim-DICOM ,Blackboard(Green)
Cooling Time 0s,normal,30s
Closed Caption N/A
Auto Ceiling Yes
D-Zoom 1~33
Others 360° Projection Yes
Edge Blending N/A
Wireless display

(Optional function)
SmartPhone:
Android:Install APK for Android
iphone: Airplay function

PC Wireless Display:
Support WiFi Display@Windows&MAC system
through dongle
Dimension&Weight
  MAX Dimensions
(WxDxH mm)
405 (W)*358(D)*137(H)
Net Weight
(KG)
~7.9
  Packaging Box Dimensions
(WxDxH mm)
510 (W)*498(D)*260(H)
Gross.Weight
(KG)
~10.4
Accessory
  Manual Languages Chinese,English
Standard Accessaries Power cord(EU) /power cord(Ja)
Remote control&RC Battery






Direct Projection and Short Throw

  • The direct projection and short throw lens of SNP-LS521LU fulfills thedemand of short distance projecting big image, achieving 2.15m image at 0.946m projecting distance.

6500 High Lumen Video Laser Projector For 3D Mapping Projection 1



Location Recognition

  • SNP-LS521LU has the direction detect device which automaticallyrecognize install direction to adjust display image direction.

6500 High Lumen Video Laser Projector For 3D Mapping Projection 2







6500 High Lumen Video Laser Projector For 3D Mapping Projection 3







Packing

Carton packaging, multi-layer protective film.

6500 High Lumen Video Laser Projector For 3D Mapping Projection 4
