360 Degree 3D Simulation Curved Fixed Frame Projector Screen Floor Stand

360 Degree 3D Simulation Curved Fixed Frame Projector Screen Floor Stand
360 Degree 3D Simulation Curved Fixed Frame Projector Screen Floor Stand 360 Degree 3D Simulation Curved Fixed Frame Projector Screen Floor Stand 360 Degree 3D Simulation Curved Fixed Frame Projector Screen Floor Stand 360 Degree 3D Simulation Curved Fixed Frame Projector Screen Floor Stand 360 Degree 3D Simulation Curved Fixed Frame Projector Screen Floor Stand 360 Degree 3D Simulation Curved Fixed Frame Projector Screen Floor Stand

Large Image :  360 Degree 3D Simulation Curved Fixed Frame Projector Screen Floor Stand

Product Details:

Place of Origin: China
Brand Name: SMX
Certification: ROHS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Carton Package
Delivery Time: 5-8 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 5000Pcs Per Month
Detailed Product Description
Gain: 2.7 View Angle: 120
Height: Up To 3.6mm Color: Silver
Frame: 8/10/15cm Frame Color: Black
Application: Cinema,Simulation
High Light:

large projection screen

,

portable projection screen

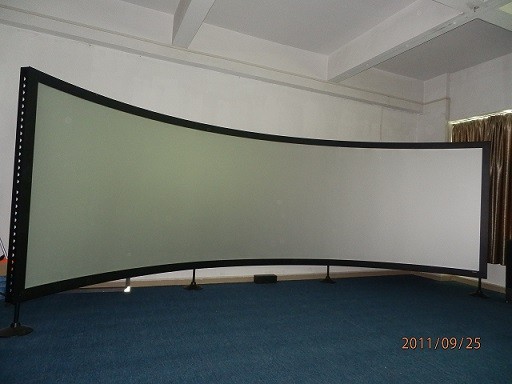

360 Degree 3D Simulation Curved Fixed Frame Projector Screen Floor Stand





We make curved screens, screens for active and passive 3D simulator screens and simulation displays. Curved Frame Screen is a customized product that is made-to-order for each customer. For the curved screen, a unique material is applied to the frame that is specially manufactured to ensure that the screen has no creases and high smoothness. Any degree and shape of the screens are available for single or multi-projector displays. All curved screens are available in a design format, custom sizes, FOV, and Radii




360 Degree 3D Simulation Curved Fixed Frame Projector Screen Floor Stand 0

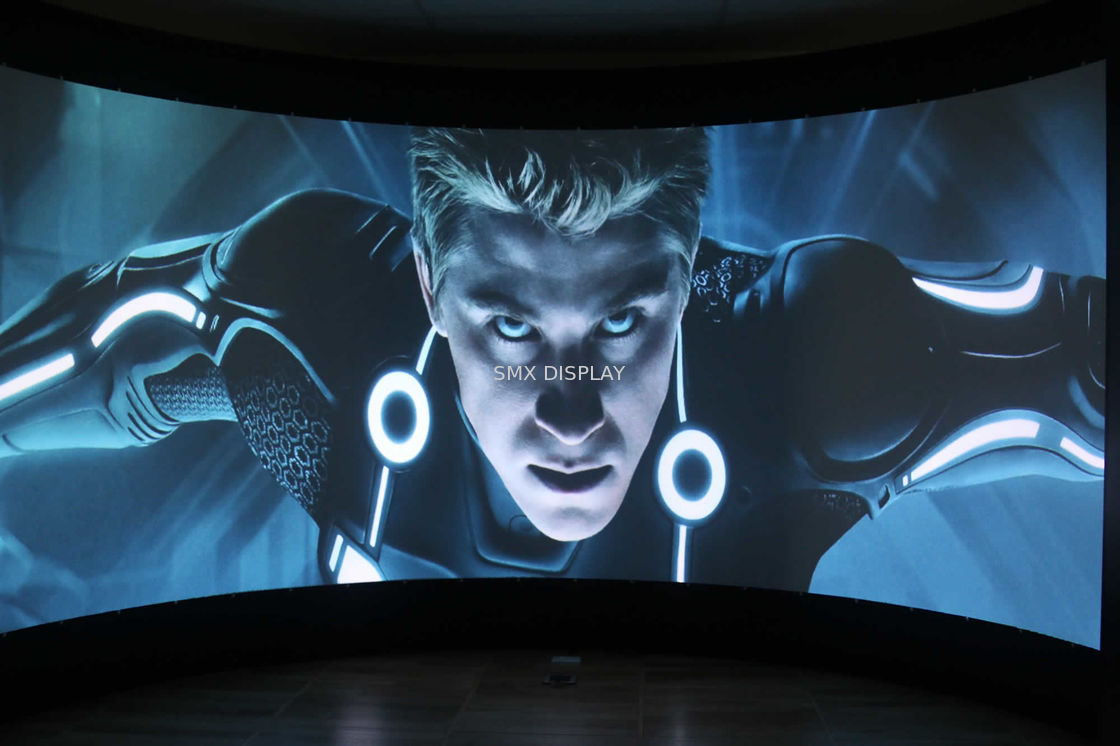

Curved Front Projection
We create curved displays from rigid substrates or from flexible screen material stretched over specially designed frames. Projector mounts can be constructed around virtually any cockpit or cab and set up with projectors edge-blended to give a near perfect seamless display around a complete 180° field of view.





Segmented Front Projection
Using rigid or flexible screens we can create multiple channel systems to give the possibility of displays with up to 360° field of view. In these applications, the projectors use hard edge blending, but the images can be exactly positioned to leave only a hairline join.





Product features

  • Gives a sense of immersion
  • For Cinema
  • For Visualization Applications
  • For Multi-channel Simulation Displays
  • Excellent for museum or exhibitions
  • Excellent for training simulators : flight simulators, driving simulators, military simulators…



Applications

  • Cinema
  • Museums, Theme Parks, Galleries
  • Gaming, Entertainment
  • Control Room
  • Training Simulators (Flight Simulators, Driving Simulators, Military Simulators…)
  • Government Projects
  • Education



Screen Parameter



Description

 Flexible White
(HD)

Flexible Gray
(HD)



Flexible Perforated


3D Silver
(Flexible)

3D Silver
(Hard)

Rear Gray
(Flexible )

Brightness(Gain)

1

0.9

1.2

2.5-2.8

0.8-4.0

3

View Angle

160

165

160

120

70-110

120

Dimension

Height

Up to
4,500 mm

Up to
3,200 mm

Up to
2,000 mm

Up to
3,600 mm

Up to
2,500 mm

Up to
 4,800 mm

Width

No Limit(Depending on # of projectors)

Material(Color)

White

Gray

White/Silver

Silver

Silver

Dark Gray

Seamless

Yes

Yes

Yes

Yes

Yes

Yes

Frame Width

8CM,10CM,15CM

3D Capability

No

No

Silver with 3D

Yes

Yes

No

Applications

Cinema,
Video Presentation

Cinema

Cinema, Acoustically Transparent

Cinema, Simulation

Cinema, Simulation

Rear Projection

Remarks

Floor Stand is optional
